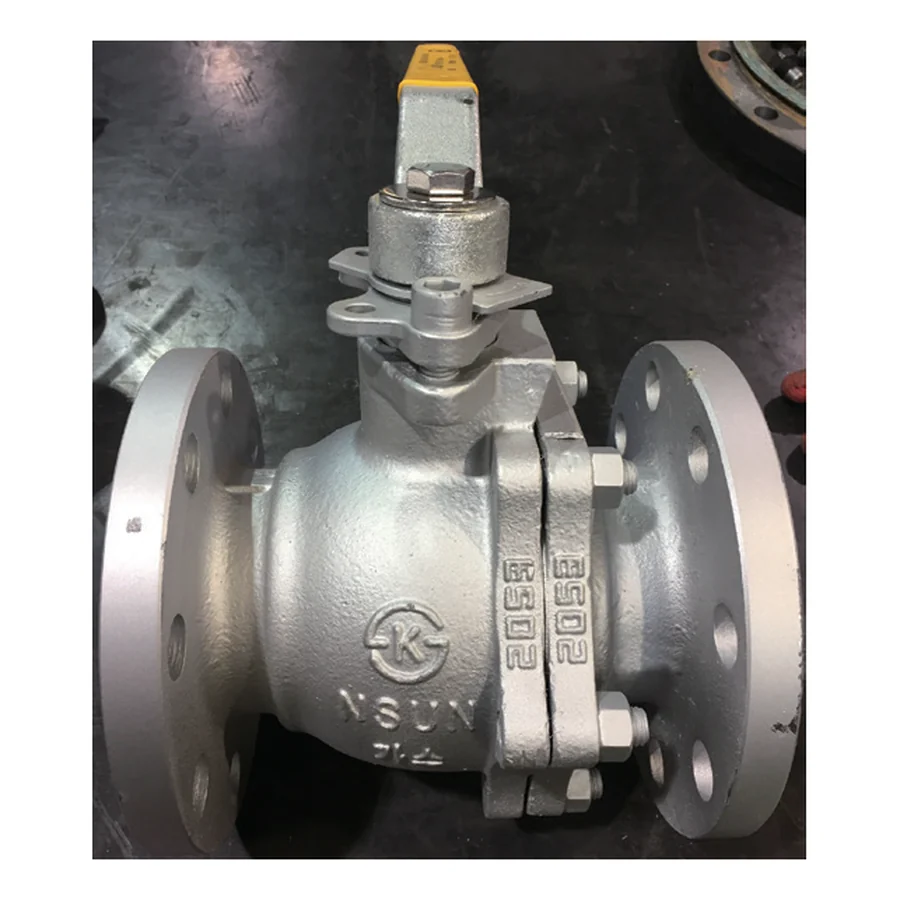

Cast Steel Ball Valve for Gas (1MPa)
Product code:TCBV-1FG
Features
- Cast steel for high temperature and pressure service, with excellent durability and pressure resistance.
- Precision machining ensures smooth operation and excellent gas tightness.
Specifications
| KGS Certified | ||
|---|---|---|
| ITEM | CONTENTS | |
| Fluid | LPG, NG | |
| Max. Working Pressure | 0.98MPa or less | |
| Max. Temperature | 120℃ or less | |
| Connection | KS 10K Flanged | |
| Hydrostatic Test | 2.94MPa (hydrostatic) | |
| Material | BODY | SCPH2 |
| TRIM | STS304 / TEFLON | |
Dimensions (unit: mm)
| SIZE | L | H |
|---|---|---|
| 40A | 165 | 136 |
| 50A | 178 | 142 |
| 65A | 190 | 155 |
| 80A | 203 | 182 |
| 100A | 229 | 216 |
| 125A | 356 | 252 |
| 150A | 395 | 283 |
