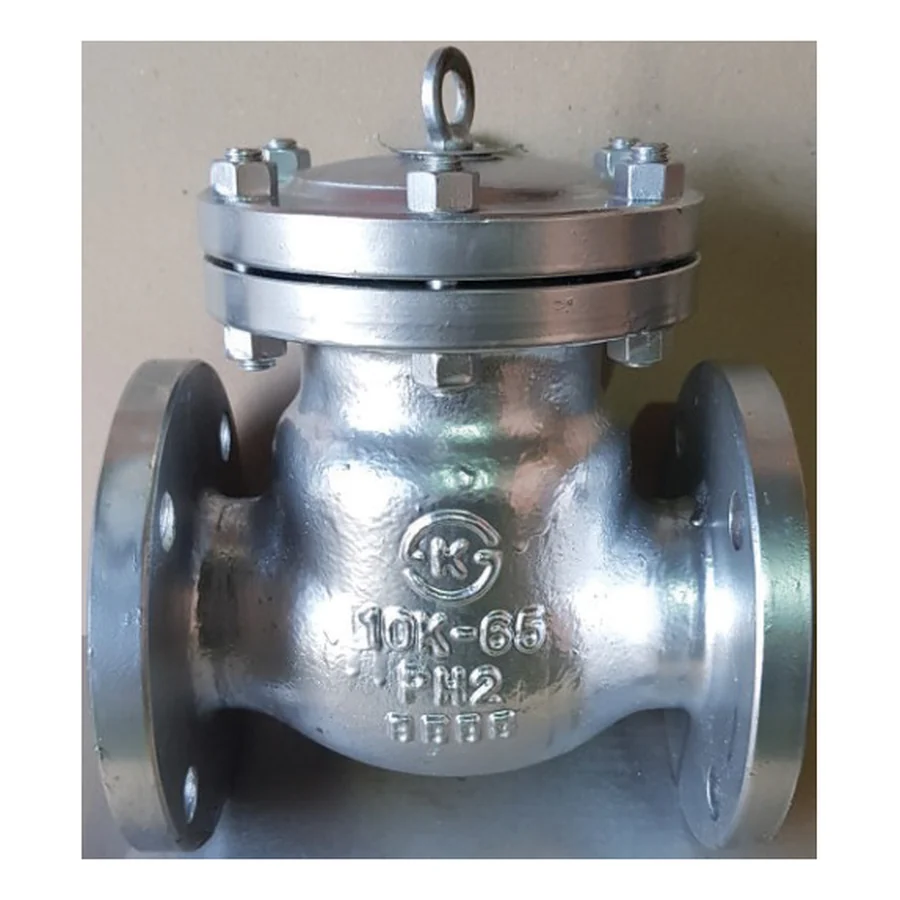

Cast Steel Swing Check Valve (1MPa/2MPa)
KSKS Certified
Product code:TCSC-1F/2F
Features
- Cast steel for high temperature and pressure service, with excellent durability and pressure resistance.
- Swing disc effectively prevents backflow.
Specifications
| ITEM | CONTENTS | |
|---|---|---|
| Fluid | Water, Steam, Oil | |
| Max. Working Pressure | 0.98MPa or less | 1.96MPa or less |
| Max. Temperature | 220℃ or less | |
| Connection | KS 10K Flanged | KS 20K Flanged |
| Hydrostatic Test | 1.8MPa (hydrostatic) | 5.3MPa (hydrostatic) |
| Material | BODY | SCPH2 |
| TRIM | SSC13 | |
Dimensions (unit: mm)
| SIZE | 10K | 20K | ||
|---|---|---|---|---|
| L | H | L | H | |
| 50A | 203 | 122 | 267 | 131 |
| 65A | 216 | 150 | 292 | 150 |
| 80A | 241 | 161 | 318 | 162 |
| 100A | 292 | 191 | 356 | 185 |
| 125A | 330 | 216 | 400 | 213 |
| 150A | 356 | 241 | 444 | 237 |
| 200A | 495 | 297 | 533 | 293 |
| 250A | 622 | 343 | 622 | 343 |
| 300A | 698 | 385 | 711 | 414 |
| ※ 350A and above are made to order | ||||
