Cast Steel Valves

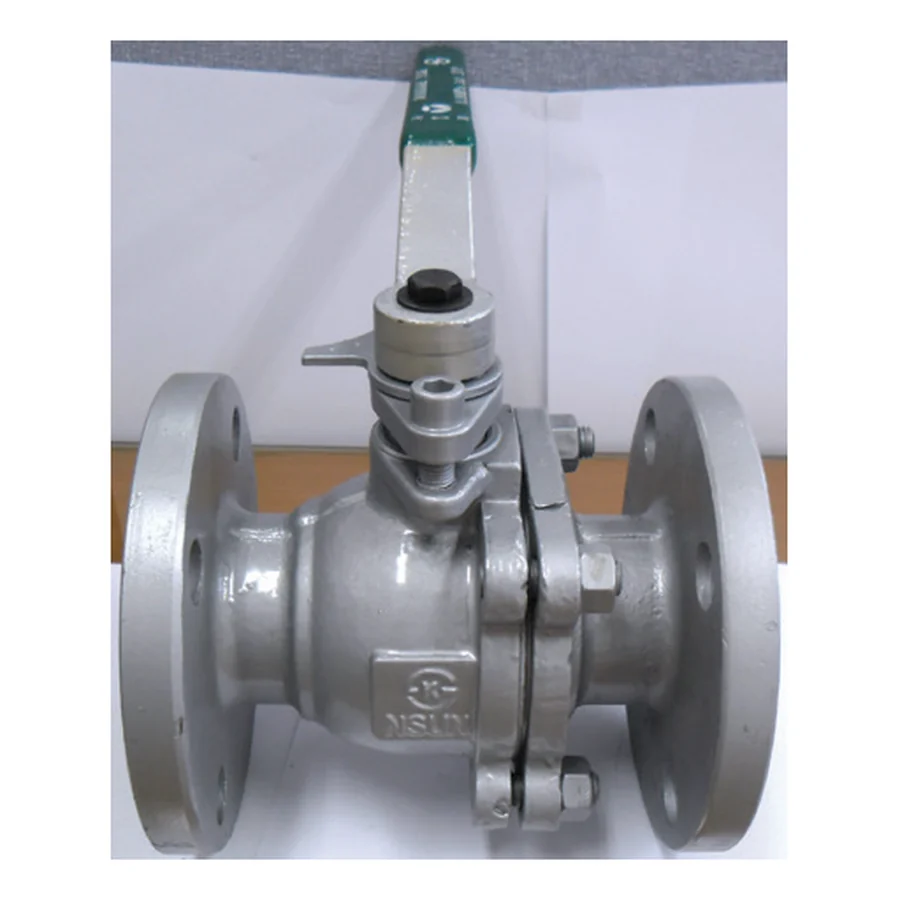

Cast Steel Ball Valve (1MPa/2MPa)
KSKS Certified
Product code:TCBV-1FK/2F
Features
- Cast steel for high temperature and pressure service, with excellent durability and pressure resistance.
- Precision machining ensures smooth operation and excellent watertightness.
Specifications
| ITEM | CONTENTS | |
|---|---|---|
| Fluid | Water | |
| Max. Working Pressure | 0.98MPa or less | 1.96MPa or less |
| Max. Temperature | 120℃ or less | |
| Connection | KS 10K Flanged | KS 20K Flanged |
| Hydrostatic Test | 2.94MPa (hydrostatic) | 5.3MPa (hydrostatic) |
| Material | BODY | SCPH2 |
| TRIM | STS304 / TEFLON | |
Dimensions (unit: mm)
| SIZE | 10K | 20K | ||
|---|---|---|---|---|
| L | H | L | H | |
| 15A | 108 | 96 | 140 | 79 |
| 20A | 117 | 97 | 152 | 82 |
| 25A | 127 | 104 | 165 | 109 |
| 32A | 140 | 108 | 178 | 113 |
| 40A | 165 | 129 | 190 | 143 |
| 50A | 178 | 139 | 216 | 151 |
| 65A | 190 | 146 | 241 | 176 |
| 80A | 203 | 185 | 283 | 209 |
| 100A | 229 | 201 | 305 | 228 |
| 125A | 356 | 280 | 381 | 316 |
| 150A | 395 | 315 | 403 | 353 |
| 200A | 457 | 435 | 502 | 340 |
| 250A | 532 | 490 | 568 | 500 |
| 300A | 610 | 550 | 648 | 520 |
