Cast Steel Valves

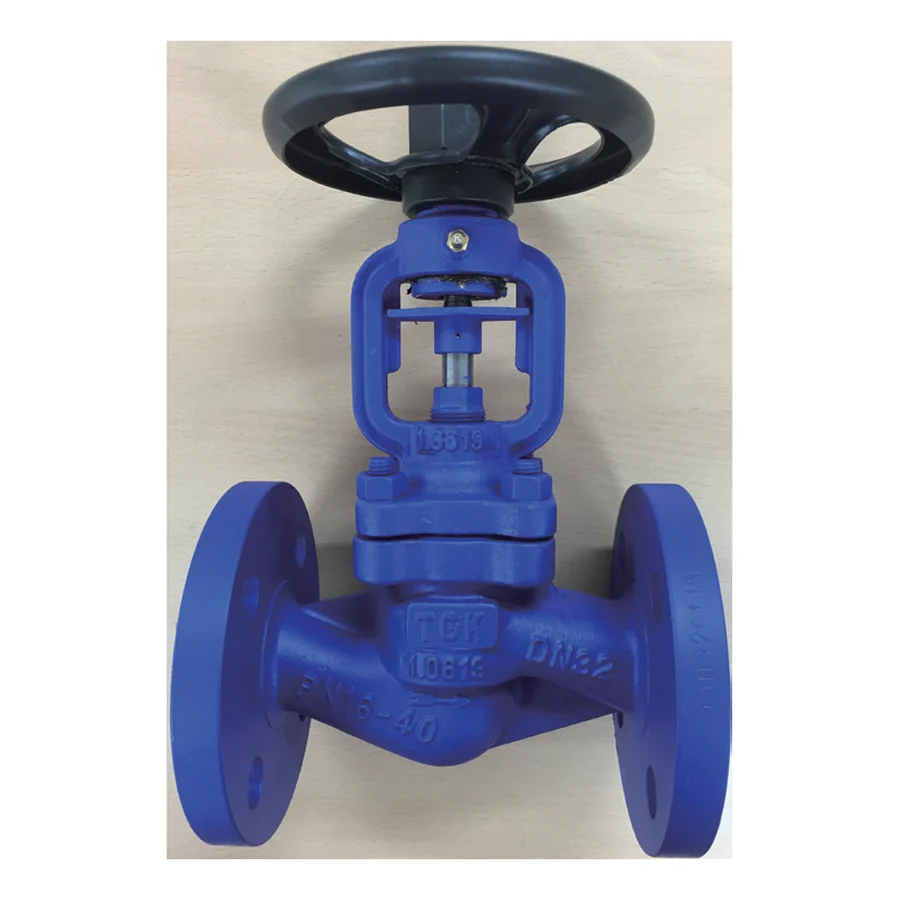

Bellows Seal Valve
Product code:TCBS-1F
Features
- Bellows seal design stops leakage along the stem and maintains reliable sealing.
Specifications
| ITEM | CONTENTS | ||
|---|---|---|---|
| Fluid | Water (cold/hot), Steam, Oil, Gas, Thermal Oil, etc. | ||
| Max. Working Pressure | 1.6MPa or less | ||
| Max. Temperature | -10℃ ~ 350℃ or less | ||
| Connection | DIN 16 Bar RF Flanged | ||
| Hydrostatic Test | 2.4MPa (hydrostatic) | ||
| BODY | SCPH2 | ||
| Mate | rial | TRIM | A105 |
| BELLOWS | STS304 | ||
Dimensions (unit: mm)
| SIZE | L | H |
|---|---|---|
| 15A | 130 | 230 |
| 20A | 150 | 230 |
| 25A | 160 | 230 |
| 32A | 180 | 230 |
| 40A | 200 | 260 |
| 50A | 230 | 260 |
| 65A | 290 | 270 |
| 80A | 310 | 300 |
| 100A | 350 | 370 |
| 125A | 400 | 400 |
| 150A | 480 | 460 |
| - | - | - |
