Cast Steel Valves

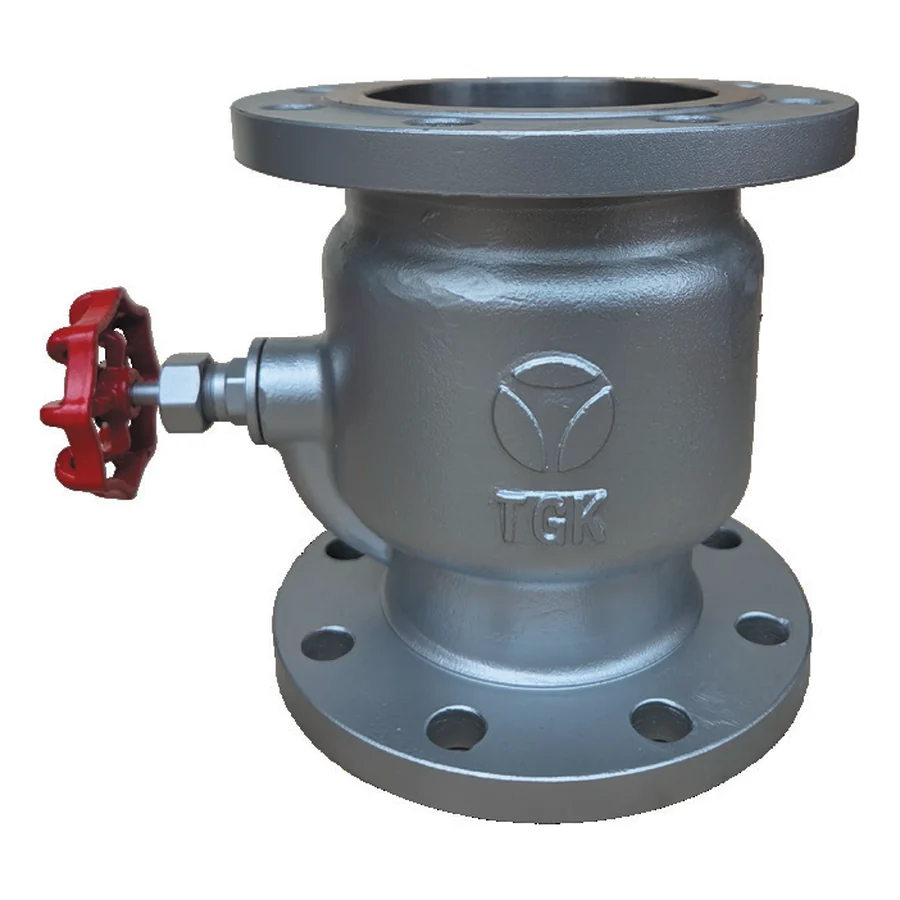

Cast Steel Hammerless Check Valve (1MPa/2MPa)
Product code:TCLC-1F/2F
Features
- Cast steel for high temperature and pressure service, with excellent durability and pressure resistance.
- Hammerless design with buffer and spring minimizes water hammer and protects piping and equipment.
- Flow-optimized design minimizes pressure loss for smooth flow.
Specifications
| ITEM | CONTENTS | |
|---|---|---|
| Fluid | Water | |
| Max. Working Pressure | 1.0 MPa or less / 2.0 MPa or less | |
| Max. Temperature | 120℃ or less | |
| Connection | KS 10K Flanged | KS 20K Flanged |
| Hydrostatic Test | 1.5MPa (hydrostatic) | 3.0MPa (hydrostatic) |
| Material | BODY | SCPH2 |
| TRIM | SCPH2, STS304 | |
Dimensions (unit: mm)
| SIZE | 10K | 20K | ||
|---|---|---|---|---|
| L | H | L | H | |
| 50A | 183 | 150 | 183 | 150 |
| 65A | 195 | 159 | 195 | 159 |
| 80A | 210 | 168 | 210 | 168 |
| 100A | 215 | 178 | 215 | 178 |
| 125A | 255 | 228 | 255 | 228 |
| 150A | 275 | 242 | 275 | 242 |
| 200A | 390 | 269 | 390 | 269 |
| 250A | 410 | 322 | 410 | 322 |
| 300A | 495 | 360 | 495 | 360 |
| 350A | 540 | 400 | 540 | 400 |
| 400A | 585 | 435 | 585 | 435 |
| 450A | 635 | 465 | 635 | 465 |
