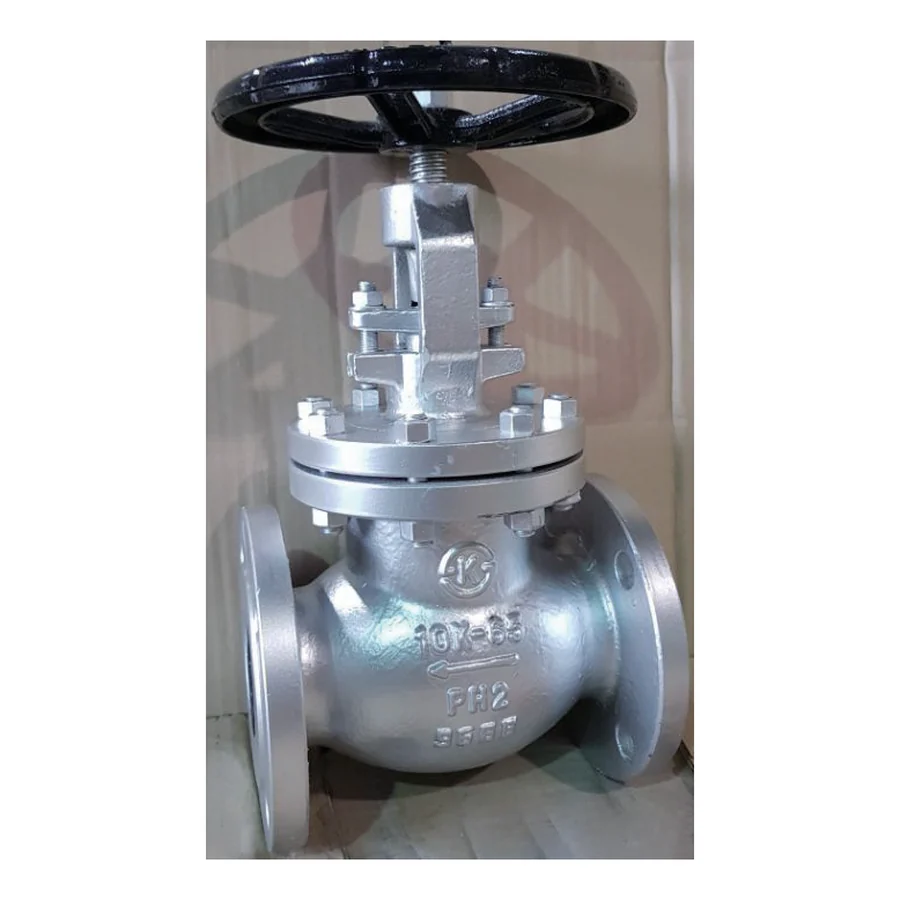

Cast Steel Globe Valve (1MPa/2MPa)
KSKS Certified
Product code:TCGL-1F/2F
Features
- Cast steel for high temperature and pressure service, with excellent durability and pressure resistance.
- Disc moves perpendicular to the seat for stable flow control.
Specifications
| Patent No. 10-1421408 | ||
|---|---|---|
| ITEM | CONTENTS | |
| Fluid | Water, Steam, Oil | |
| Max. Working Pressure | 0.98MPa or less | 1.96MPa or less |
| Max. Temperature | 220℃ or less | |
| Connection | KS 10K Flanged | KS 20K Flanged |
| Hydrostatic Test | 1.8MPa (hydrostatic) | 5.3MPa (hydrostatic) |
| Material | BODY | SCPH2 |
| TRIM | STS410 | |
Dimensions (unit: mm)
| SIZE | 10K | 20K | ||
|---|---|---|---|---|
| L | H | L | H | |
| 50A | 203 | 320 | 267 | 365 |
| 65A | 216 | 370 | 292 | 410 |
| 80A | 241 | 425 | 318 | 475 |
| 100A | 292 | 485 | 356 | 525 |
| 125A | 356 | 547 | 400 | 600 |
| 150A | 406 | 589 | 444 | 655 |
| 200A | 495 | 774 | 559 | 785 |
| 250A | 622 | - | 622 | - |
| 300A | 698 | - | 711 | - |
| ※ 350A and above are made to order | ||||
