Cast Steel Valves

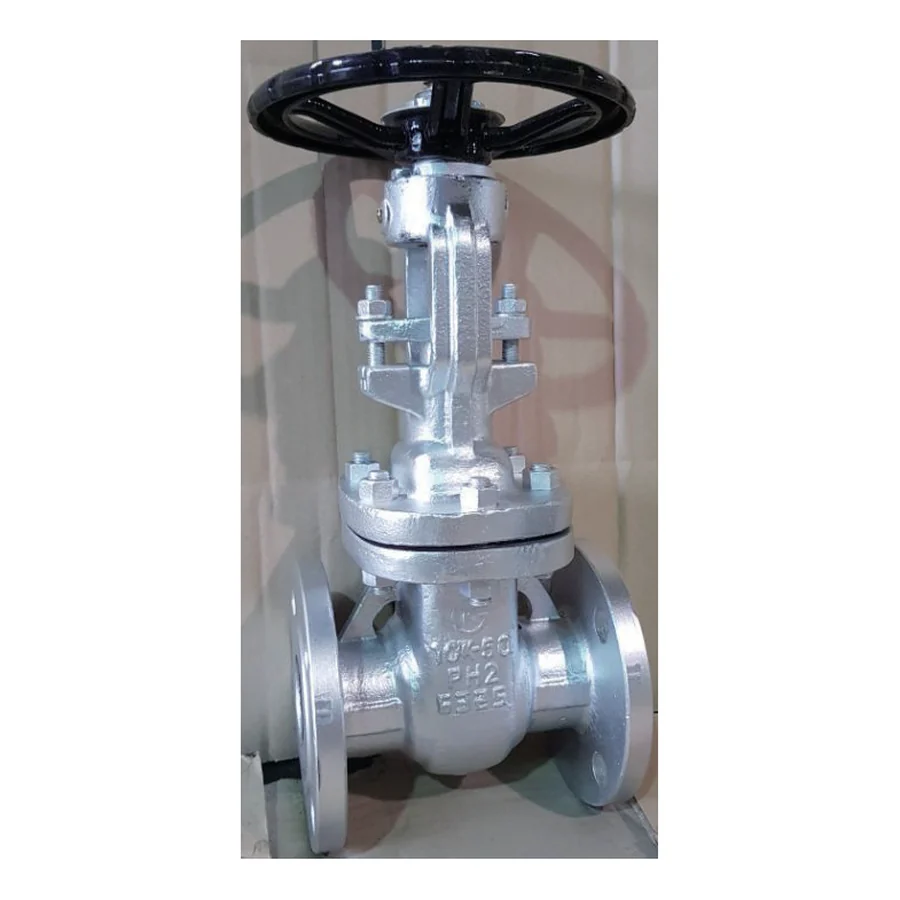

Cast Steel OS&Y Gate Valve (1MPa/2MPa)
KSKS Certified
Product code:TCOY-1F/2F
Features
- Cast steel for high temperature and pressure service, with excellent durability and pressure resistance.
- OS&Y (Outside Screw & Yoke) design shows the open/closed position of the valve at a glance.
Specifications
| Utility Model No. 20-0465839 | ||
|---|---|---|
| ITEM | CONTENTS | |
| Fluid | Water, Steam, Oil | |
| Max. Working Pressure | 0.98MPa or less | 1.96MPa or less |
| Max. Temperature | 220℃ or less | |
| Connection | KS 10K Flanged | KS 20K Flanged |
| Hydrostatic Test | 1.8MPa (hydrostatic) | 5.3MPa (hydrostatic) |
| Material | BODY | SCPH2 |
| TRIM | STS410 | |
Dimensions (unit: mm)
| SIZE | 10K | 20K | ||
|---|---|---|---|---|
| L | H | L | H | |
| 50A | 178 | 400 | 216 | 430 |
| 65A | 190 | 464 | 241 | 495 |
| 80A | 203 | 490 | 283 | 550 |
| 100A | 229 | 562 | 305 | 640 |
| 125A | 254 | 645 | 381 | 685 |
| 150A | 267 | 750 | 403 | 840 |
| 200A | 292 | 950 | 419 | 1000 |
| 250A | 330 | 1160 | 457 | 1210 |
| 300A | 356 | 1360 | 502 | 1425 |
| ※ 350A and above are made to order | ||||
