Cast Steel Valves

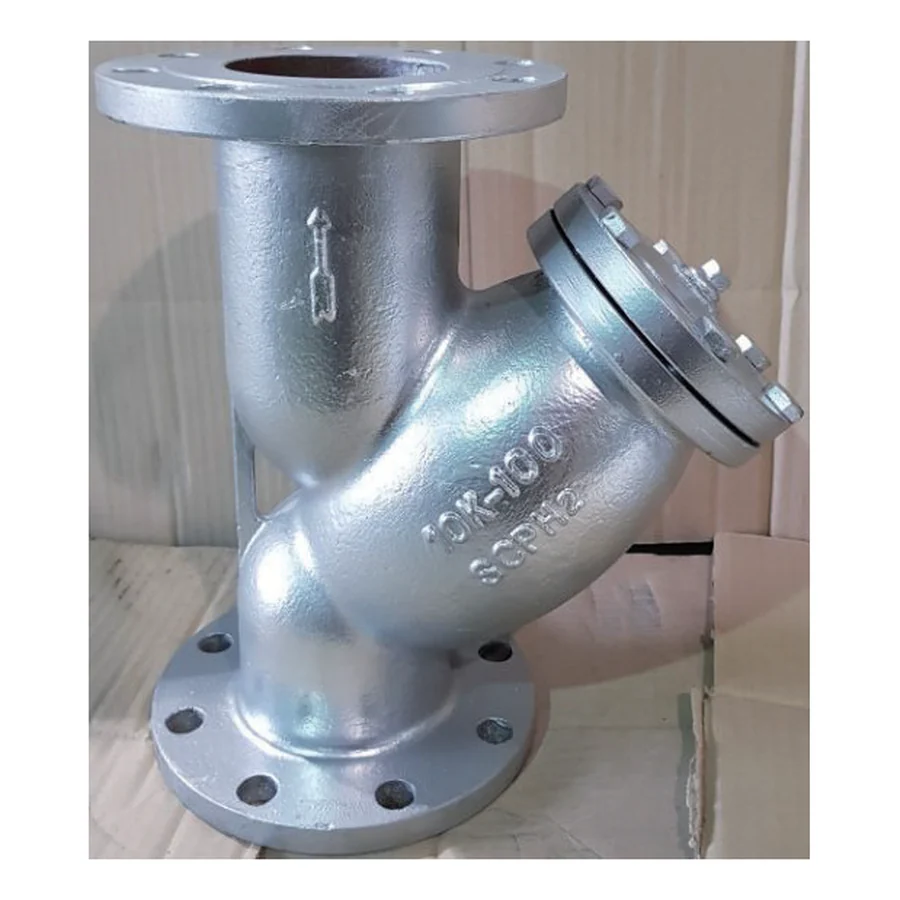

Cast Steel Strainer (1MPa/2MPa)
KCKC Certified
Product code:TCST-1F/2F
Features
- Cast steel for high temperature and pressure service, with excellent durability and pressure resistance.
- Efficient filtering structure protects piping and key equipment from foreign matter.
Specifications
| ITEM | CONTENTS | |
|---|---|---|
| Fluid | Water, Steam, Oil | |
| Max. Working Pressure | 1.0MPa / 2.0MPa or less | |
| Max. Temperature | 220℃ or less | |
| Connection | KS 10K Flanged / KS 20K Flanged | |
| Hydrostatic Test | 2.0MPa / 3.0MPa (hydrostatic) | |
| Material | BODY | SCPH2 |
| TRIM | STS304 | |
Dimensions (unit: mm)
| SIZE | 10K | 20K | ||
|---|---|---|---|---|
| L | H | L | H | |
| 50A | 222 | 150 | 220 | 126 |
| 65A | 272 | 170 | 270 | 149 |
| 80A | 292 | 185 | 290 | 166 |
| 100A | 355 | 238 | 355 | 207 |
| 125A | 395 | 263 | 395 | 237 |
| 150A | 447 | 295 | 465 | 281 |
| 200A | 545 | 380 | 560 | 352 |
| 250A | 665 | 505 | 665 | 520 |
| 300A | 765 | 550 | 765 | 550 |
