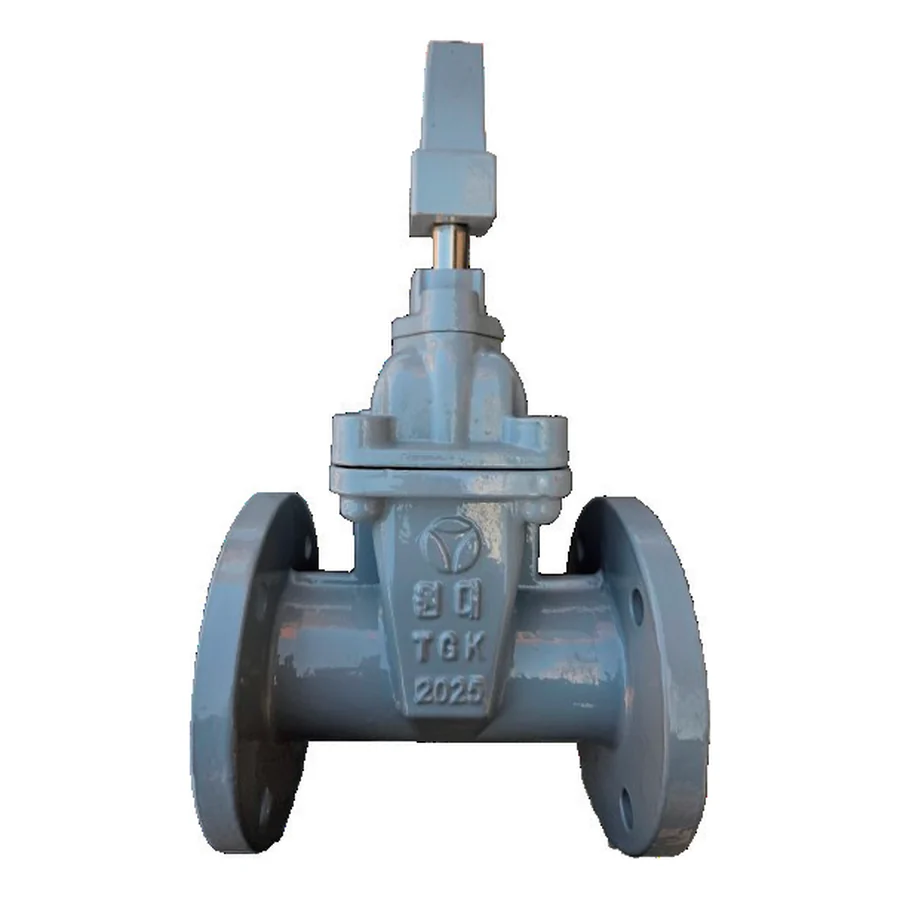

Soft Seal Gate Valve for Waterworks (1MPa)
KCKC Certified
Product code:TGJS-1S(DZZF-1)
Features
- Rubber-molded disc gives excellent watertightness with little friction or shock, for smooth operation.
- Epoxy powder coating inside and out for excellent corrosion resistance.
Specifications
| ITEM | CONTENTS | |
|---|---|---|
| Fluid | Water Supply & Sewage | |
| Max. Working Pressure | 1.0MPa or less | |
| Max. Temperature | 5℃ ~ 60℃ | |
| Connection | KS B 2334 Flanged | |
| Hydrostatic Test | 2.3MPa (hydrostatic) | |
| Material | BODY | GCD450 |
| TRIM | GCD + EPDM Coating | |
Dimensions (unit: mm)
| SIZE | L | H |
|---|---|---|
| 50A | 180 | 299 |
| 80A | 240 | 377 |
| 100A | 250 | 413 |
| 150A | 280 | 509 |
| 200A | 300 | 609 |
| 250A | 380 | 712 |
| 300A | 400 | 790 |
| 350A | 430 | 915 |
| 400A | 470 | 1010 |
| 450A | 500 | 1110 |
| 500A | 530 | 1200 |
| - | - | - |
