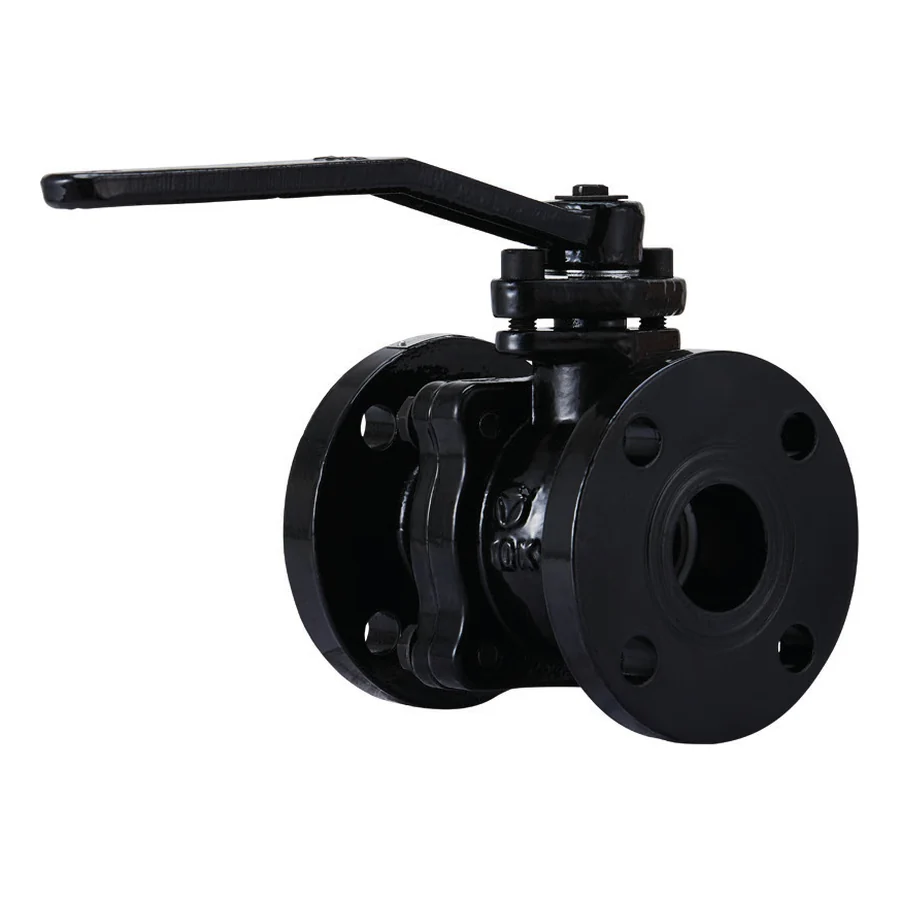

Cast Iron Ball Valve (1MPa)
Product code:TGBV-1F
Features
- Precision machining ensures smooth operation and excellent watertightness.
Specifications
| ITEM | CONTENTS | |
|---|---|---|
| Fluid | Water, Air | |
| Max. Working Pressure | 1.0MPa or less | |
| Max. Temperature | 80℃ or less | |
| Connection | KS 10K Flanged | |
| Hydrostatic Test | 1.5MPa (hydrostatic) | |
| Material | BODY | GC200 |
| TRIM | STS304 | |
Dimensions (unit: mm)
| SIZE | L | H |
|---|---|---|
| 40A | 180 | 150 |
| 50A | 180 | 150 |
| 65A | 190 | 165 |
| 80A | 200 | 170 |
| 100A | 230 | 195 |
| 125A | 265 | 215 |
| 150A | 277 | 215 |
