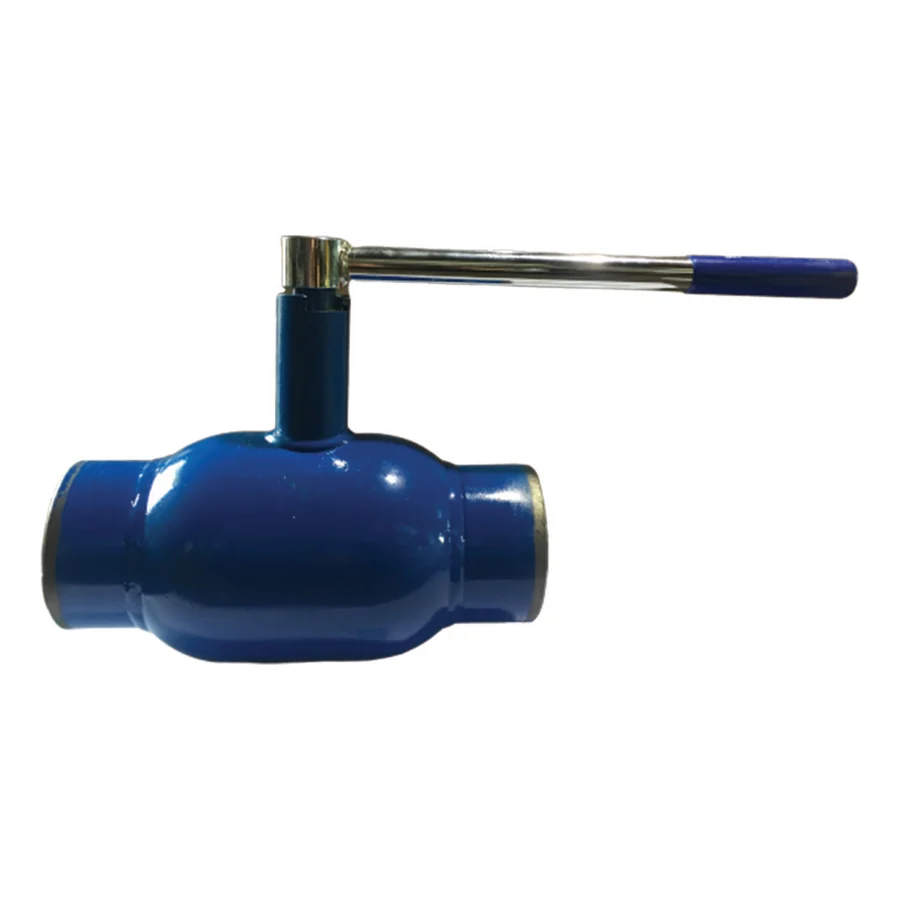

Weld-Type Ball Valve (2MPa)
Product code:TPBV-2W
Features
- Welds directly to the pipe for a strong connection.
- Precision-machined ball and seat provide excellent sealing and smooth flow.
Specifications
| ITEM | CONTENTS | |
|---|---|---|
| Fluid | Water, Air, Oil | |
| Max. Working Pressure | 2.0MPa or less | |
| Max. Temperature | -20℃ ~ 232℃ | |
| Connection | Butt welding | |
| Hydrostatic Test | 3.5MPa (hydrostatic) | |
| Material | BODY | SPPS 38 |
| TRIM | STS304 / PTFE | |
Dimensions (unit: mm)
| SIZE | L | H |
|---|---|---|
| 15A | 130 | 105 |
| 20A | 150 | 105 |
| 25A | 160 | 110 |
| 32A | 180 | 116 |
| 40A | 200 | 126 |
| 50A | 230 | 136 |
| 65A | 290 | 152 |
| 80A | 310 | 170 |
| 100A | 350 | 190 |
| 125A | 400 | 215 |
| 150A | 450 | 250 |
| - | - | - |
