Composite Valves

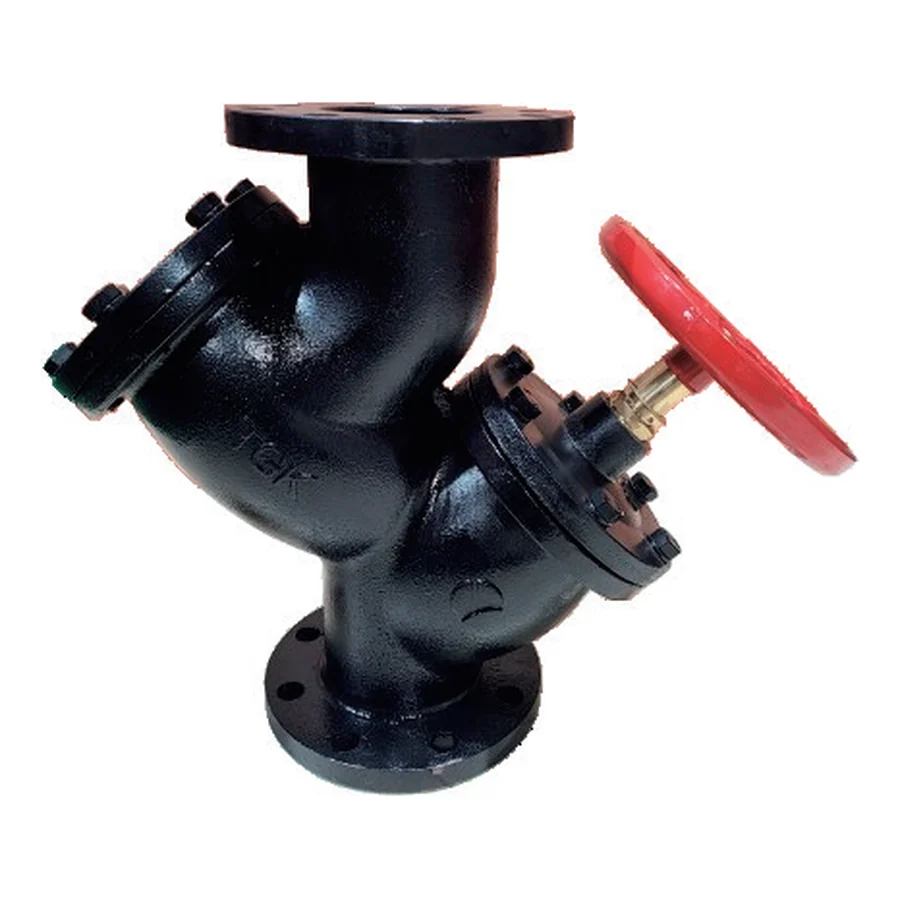

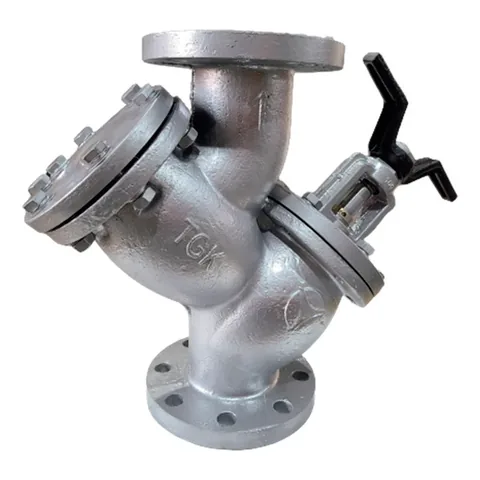

G.S Valve (1MPa/2MPa)
Product code:TDGS-1 / TDGS-2
Features
- Combines a globe valve and a strainer in one body, saving piping space and installation work.
- Flow-optimized internal design reduces flow loss and allows efficient flow control.
- OS&Y (Outside Screw & Yoke) design shows the open/closed position of the stem at a glance.
Notes
- Tamper switch can be fitted (2MPa models)
Specifications
| ITEM | CONTENTS | |
|---|---|---|
| Fluid | Water, Steam | |
| Max. Working Pressure | 1.0MPa or less | 2.0MPa or less |
| Max. Temperature | 120℃ or less | |
| Connection | KS 10K Flanged | KS 20K Flanged |
| Hydrostatic Test | 1.5MPa (hydrostatic) | 3.0MPa (hydrostatic) |
| BODY | ||
| Material | GCD450 | GCD450 |
| TRIM | ||
Dimensions (unit: mm)
| SIZE | 10K | 20K | ||
|---|---|---|---|---|
| L | H | L | H | |
| 50A | 285 | 234 | 289 | 293 |
| 65A | 323 | 253 | 355 | 327 |
| 80A | 367 | 287 | 403 | 341 |
| 100A | 430 | 316 | 448 | 358 |
| 125A | 479 | 358 | 521 | 414 |
| 150A | 561 | 419 | 600 | 454 |
