Stainless Steel Valves · Globe Valves

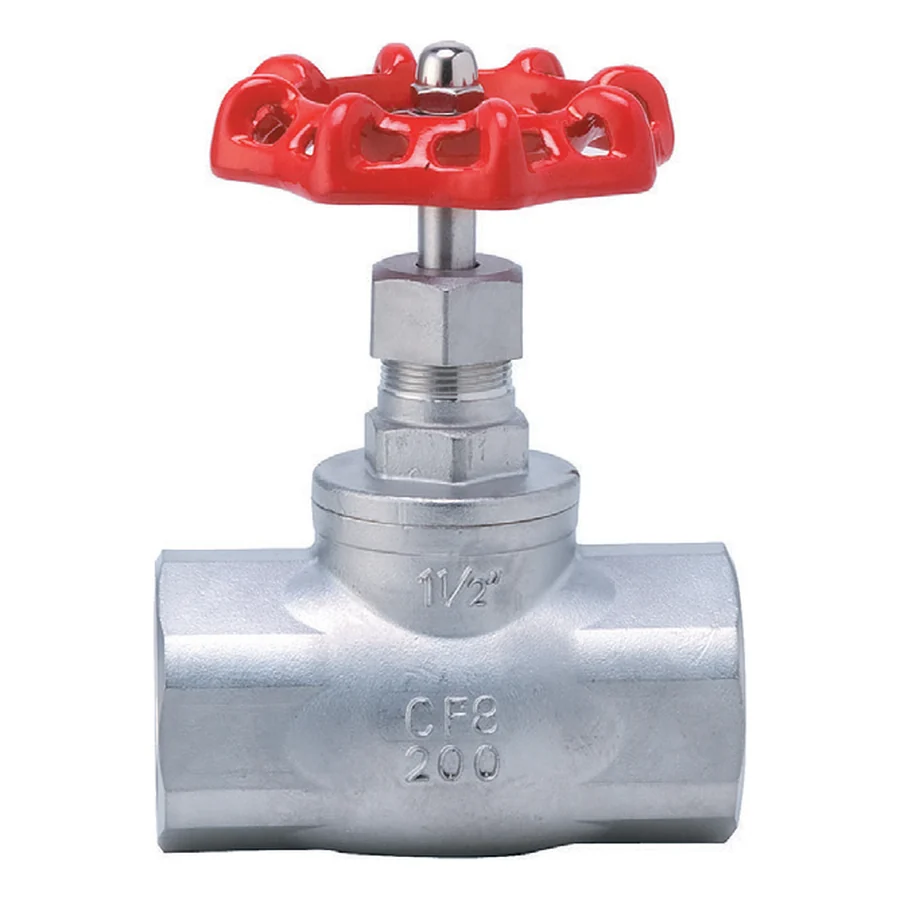

Stainless Globe Valve, Screwed (1MPa)
KCKC Certified
Product code:TSGL-1S
Features
- Stainless steel construction resists wear and corrosion from the fluid and provides excellent durability.
Notes
- Installation on horizontal piping is recommended.
Specifications
| ITEM | CONTENTS | |
|---|---|---|
| Fluid | Water, Oil, Steam | |
| Max. Working Pressure | 1.0MPa or less | |
| Max. Temperature | 180℃ or less | |
| Connection | KS PT Screwed | |
| Hydrostatic Test | 1.5MPa (hydrostatic) | |
| Material | BODY | SSC13, SSC14 |
| TRIM | SSC13 / STS304 | |
Dimensions (unit: mm)
| SIZE | L | H |
|---|---|---|
| 15A | 68 | 92 |
| 20A | 79 | 97 |
| 25A | 87 | 108 |
| 32A | 103 | 128 |
| 40A | 118 | 135 |
| 50A | 138 | 150 |
